HOFNER GUITAR SCHEMATIC WIRING DIAGRAMS - WORKSHOP ORIGINALS

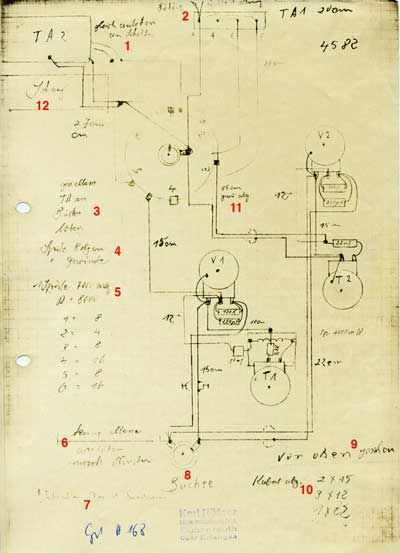

HOFNER MODEL 4582 THINLINE GUITAR - c1977









TRANSLATION OF NOTES ON THE ABOVE WIRING DIAGRAM.

Many thanks to Sascha Gohel for his work on this.







No. Original Words English Translation Side Notes
1. Gleich anlöten an Schalter  Solder directly to the switch.  TA’ means pickup’. I think the neck PU goes to an eyeletboard first; the bridge PU directly to the rotary switch.
2. Lötöse Eyelet (board)
3. ges. Masse TA (?) an Buchse löten Solder all grounds to output jack
4.

Spule Bolzen

Spule Gewinde

Coil stud/pin

Coil winding

5.

1 Spule 7000 Windungen R - 8000

1 coil – 7000 windings
6. Keine Masse anlöten  ??? Do not solder the ground I can't read the last part.
7. ! Schalter Pos. 1   ??? Switch position 1   ??? I can’t read the last word.
8. Buchse (Output) Jack
9. Von oben gesehen Viewed from above
10. Kabel abg. Wires leaving I assume these are the lengths in cm.
11. 15cm grün abg. 15cm green leaving (?)
12. Steg Bridge
